Electroless Plating
Electroless Nickel (Low Phosphorus)
8-poster reference series covering each stage of the Electroless Nickel (Low Phosphorus) process. Available in English and Spanish, dark and light editions.
Technical Reference Posters
9 designs · EN / ES · Dark / LightDeep-dive engineering references — chemistry, specifications, and operating parameters for engineers, chemists, and lead operators.
The essential reference for electroless nickel plating. Covers the autocatalytic reaction, phosphoru…

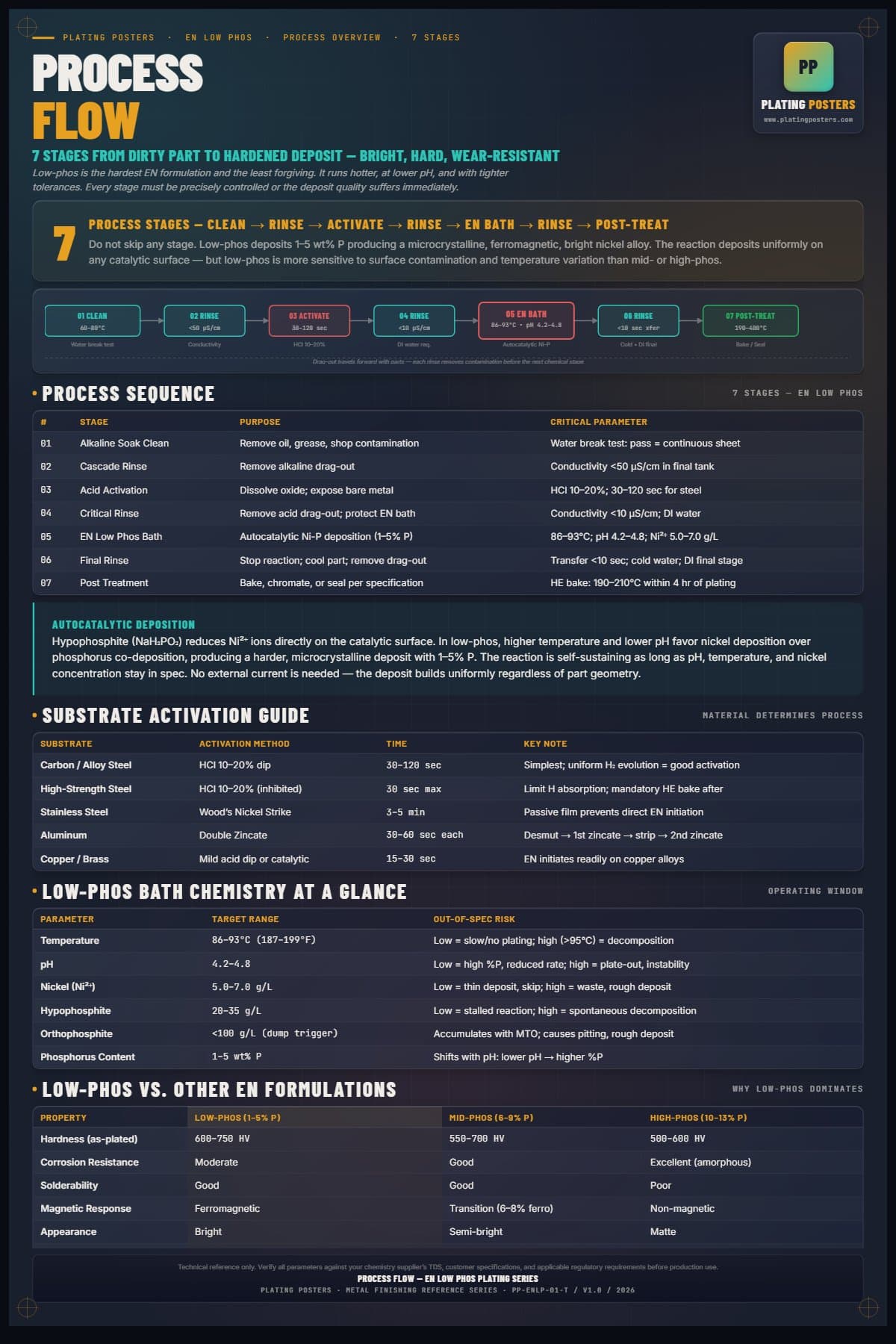

Visual map of all 7 stages in the Electroless Nickel Low Phosphorus process: Clean → Rinse → Activat…

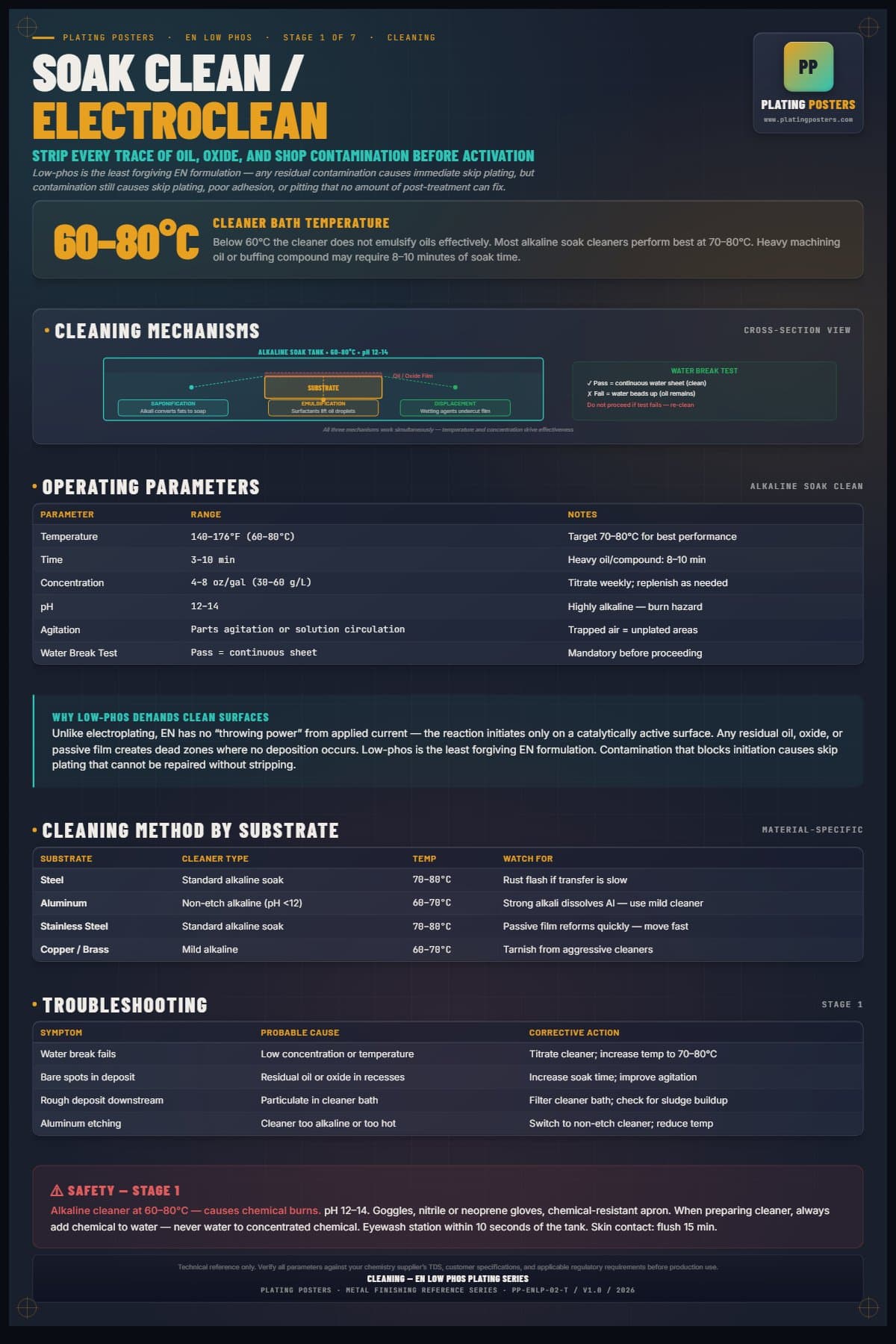

Critical parameters and common failure modes for the EN Low Phosphorus cleaning stage. Covers soak a…

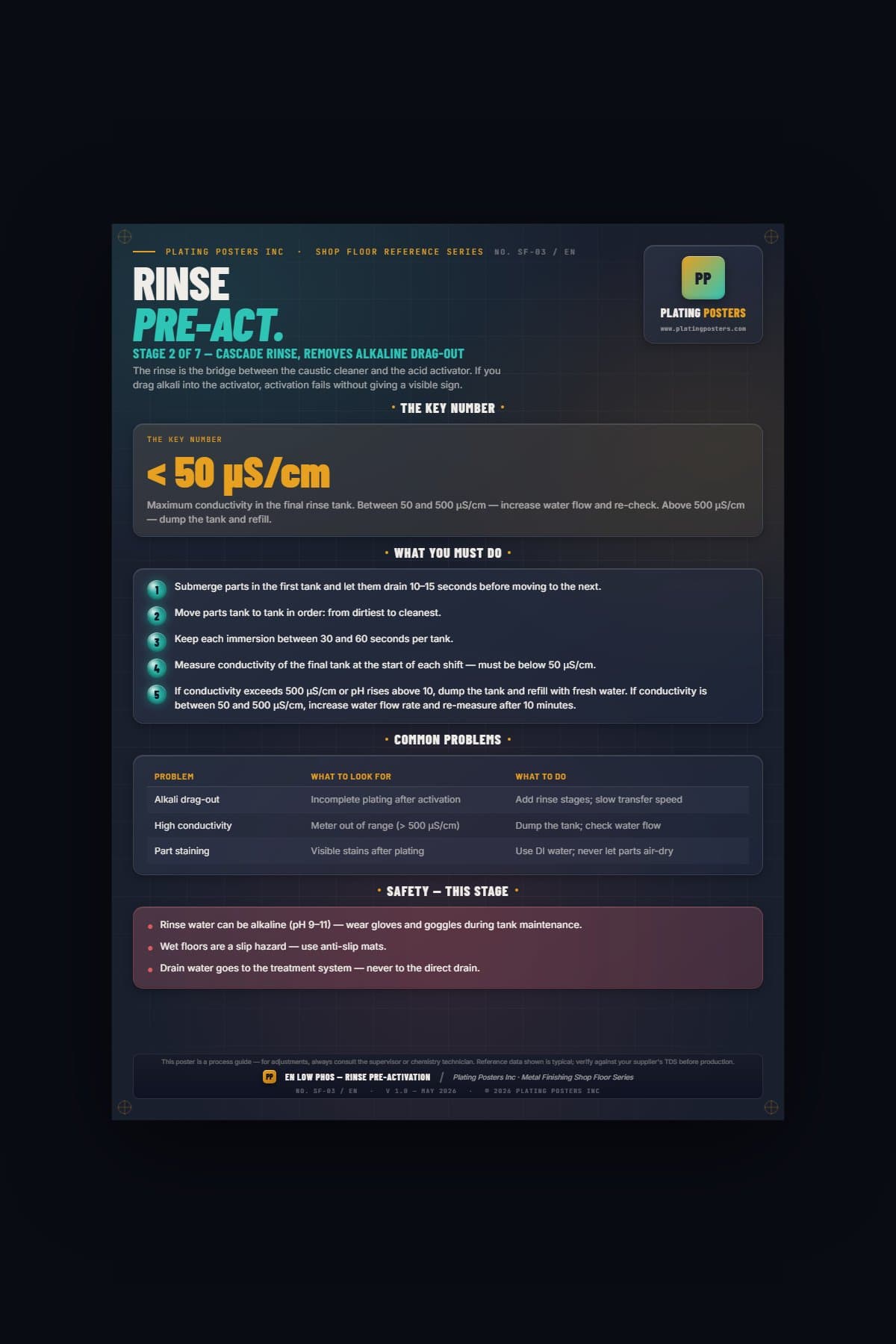

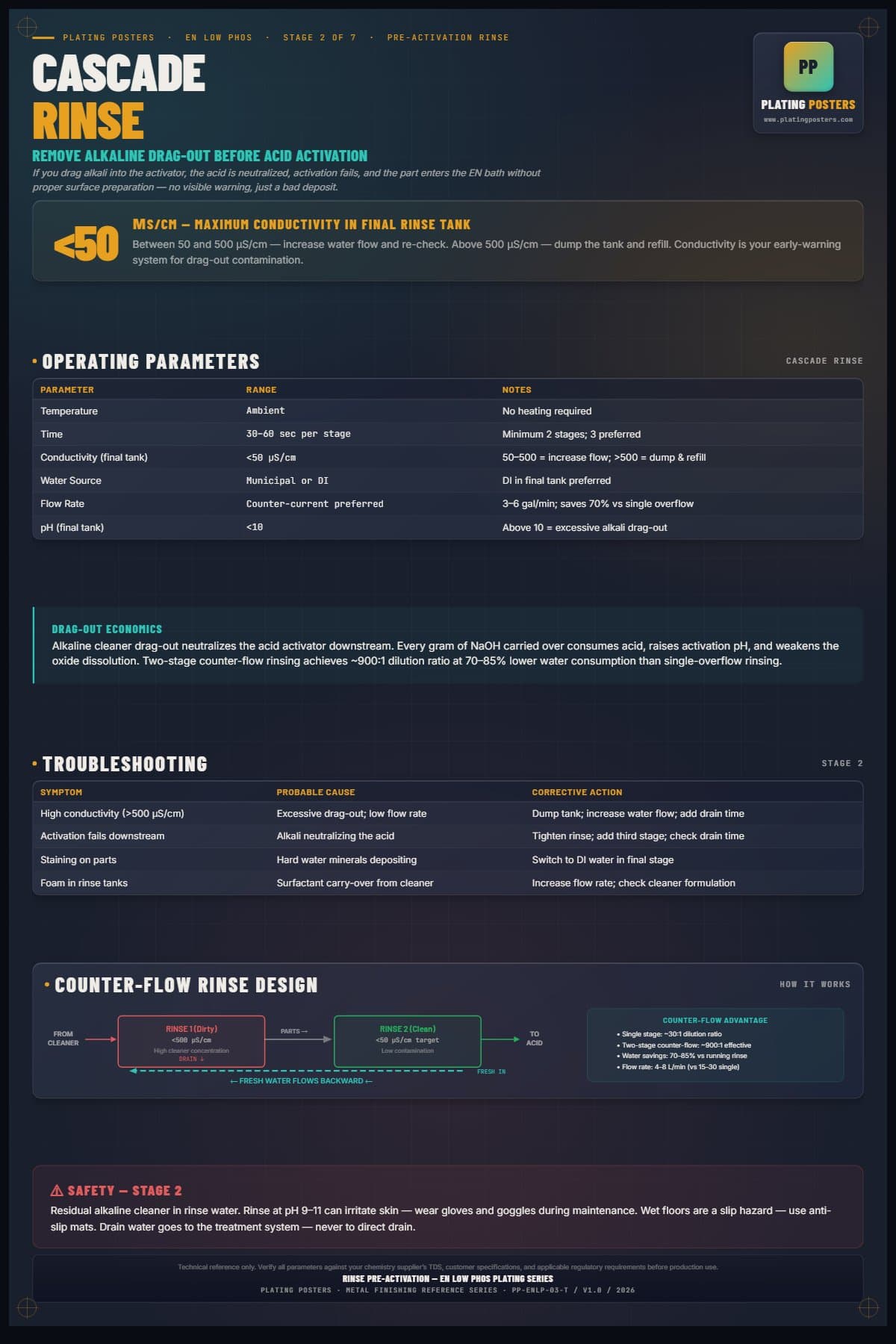

Key Number: < 50 µS/cm. Controls cleaner carry-over before acid activation. Covers conductivity thre…

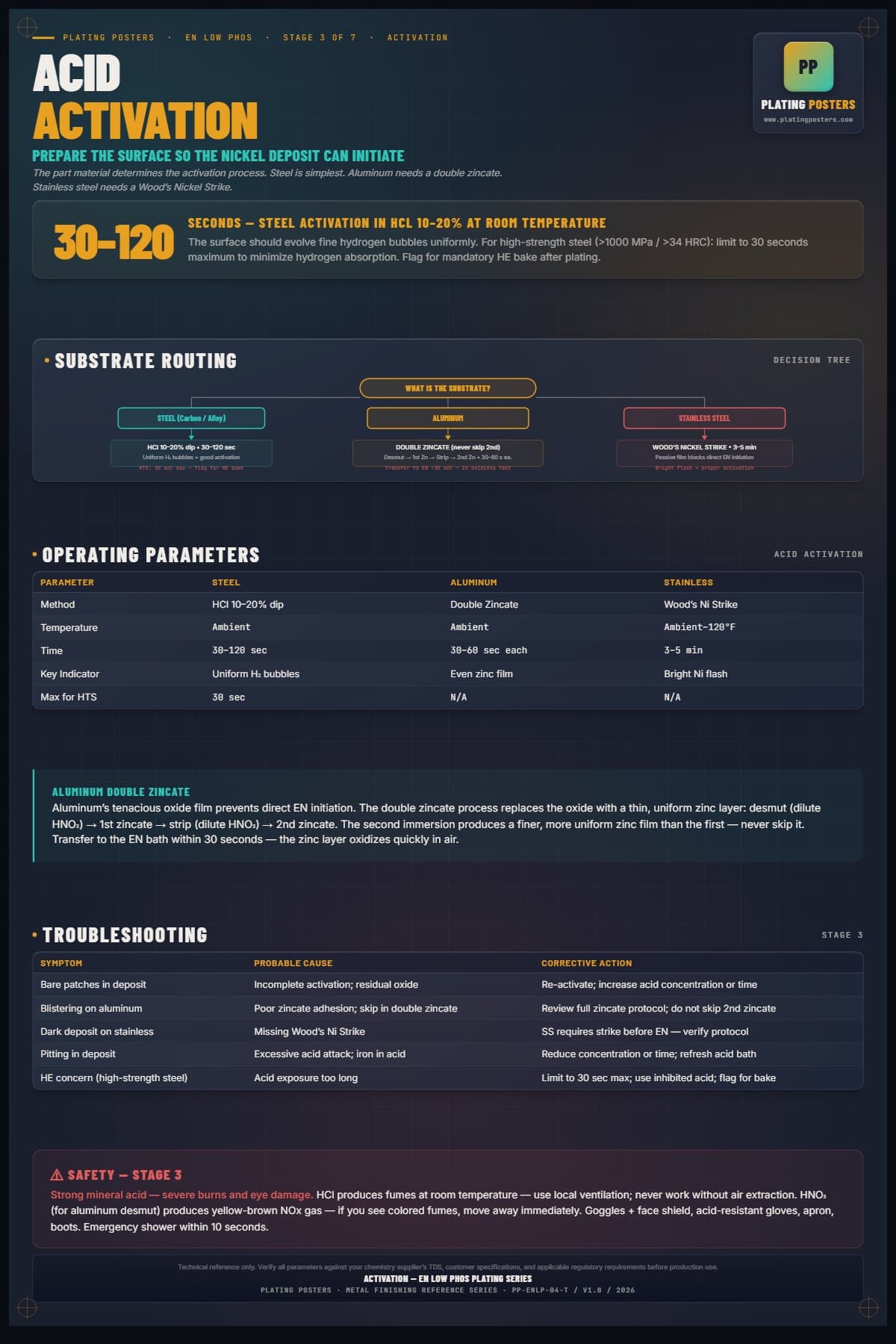

Key Number: 30–120 seconds (HTS maximum 30 sec). Hydrochloric acid activation parameters, substrate-…

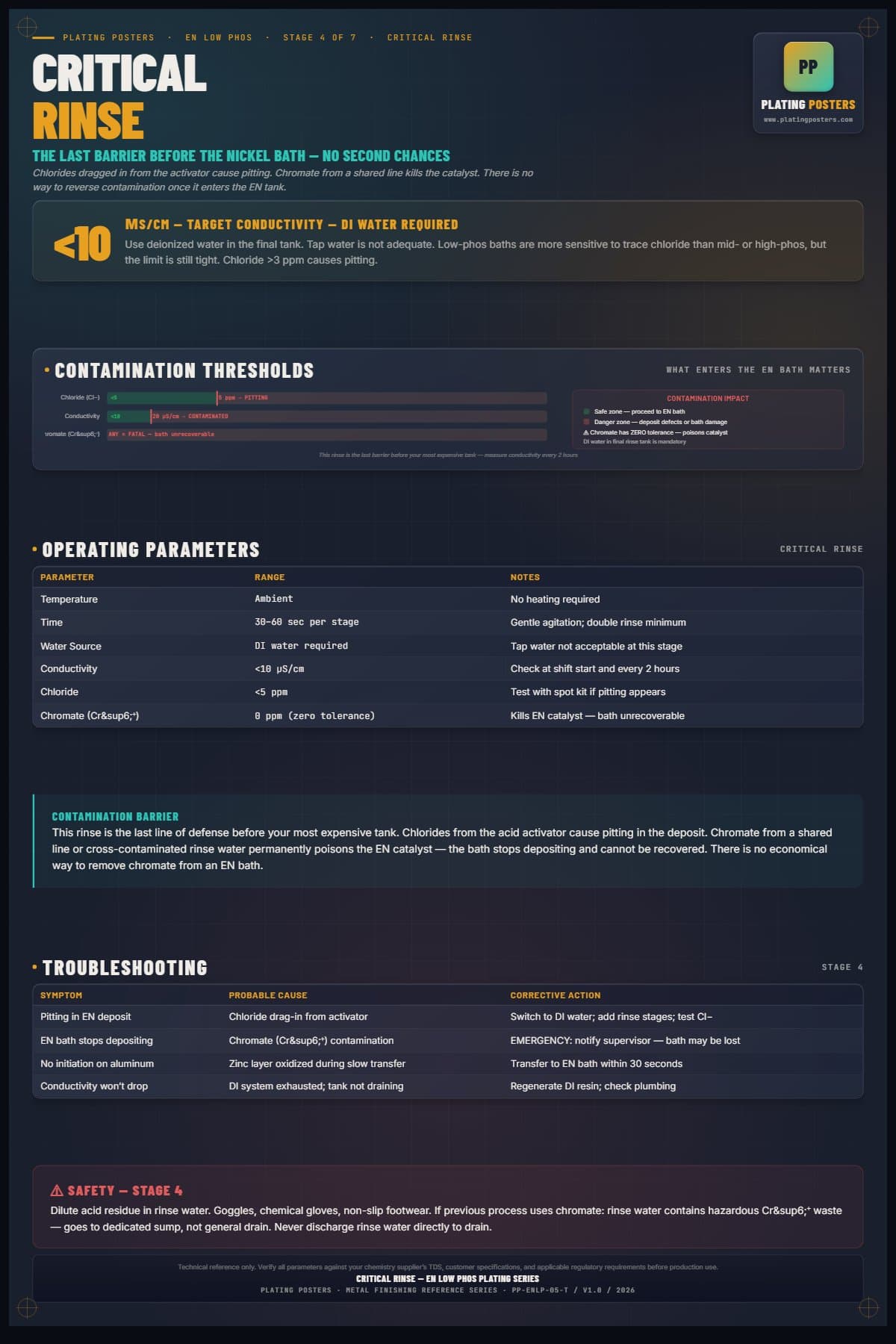

Key Number: < 20 µS/cm. The tightest rinse spec in the line — chloride carry-over here poisons the E…

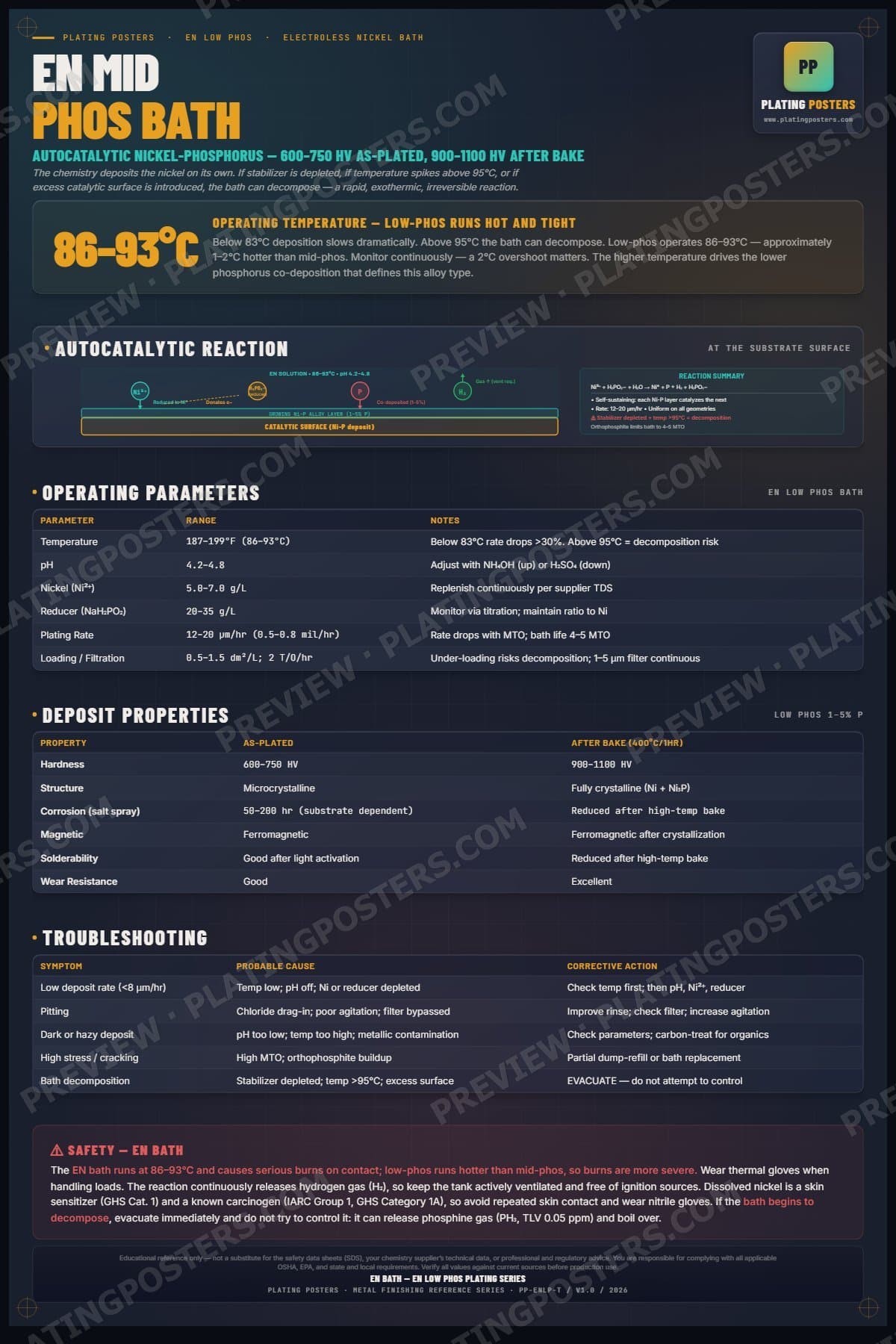

Key Number: 80–92 °C. Complete operating parameters for the Low Phosphorus EN bath: temperature, pH …
Key Number: < 10 seconds transfer time. Post-plate rinse requirements, nickel drag-out control, and …

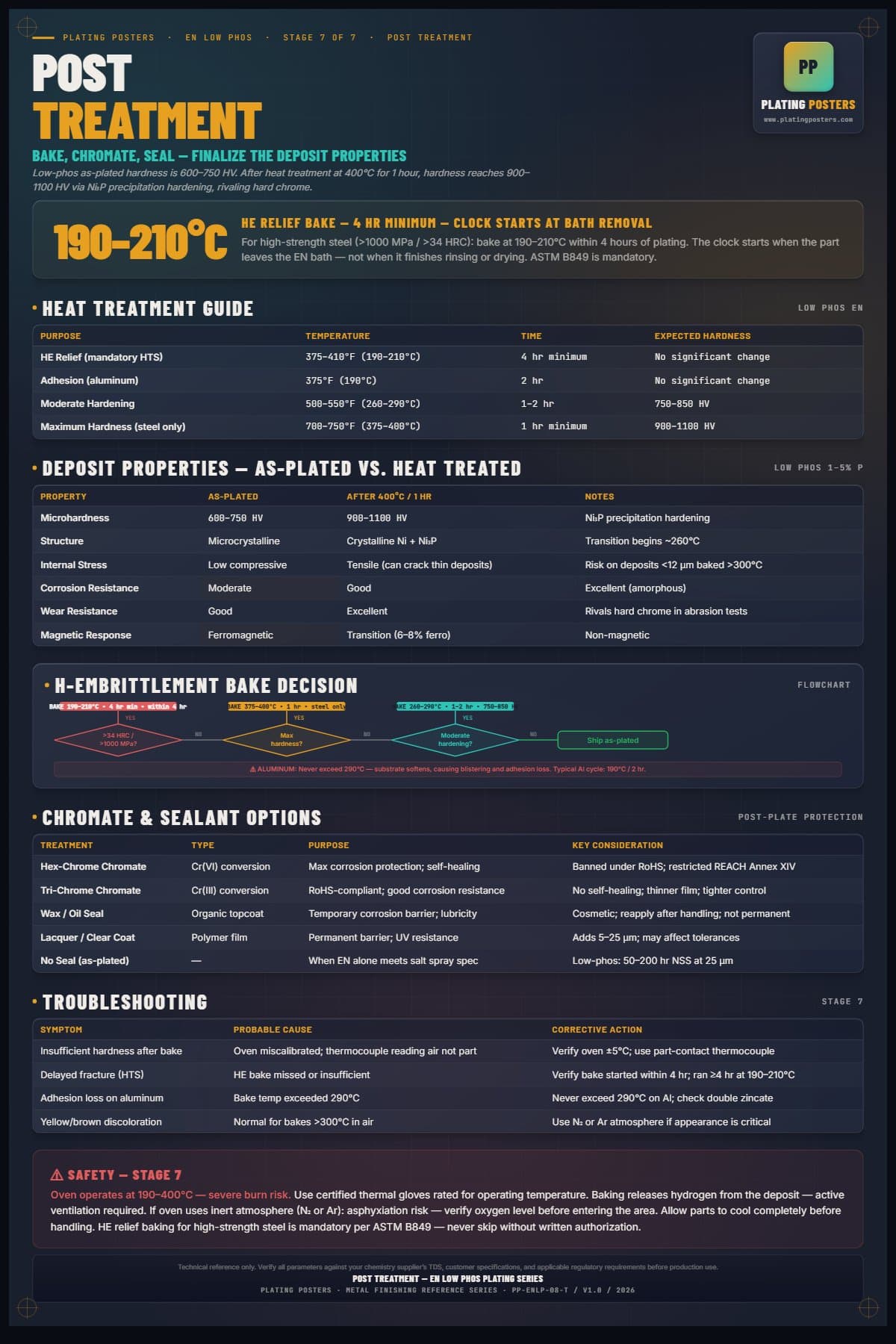

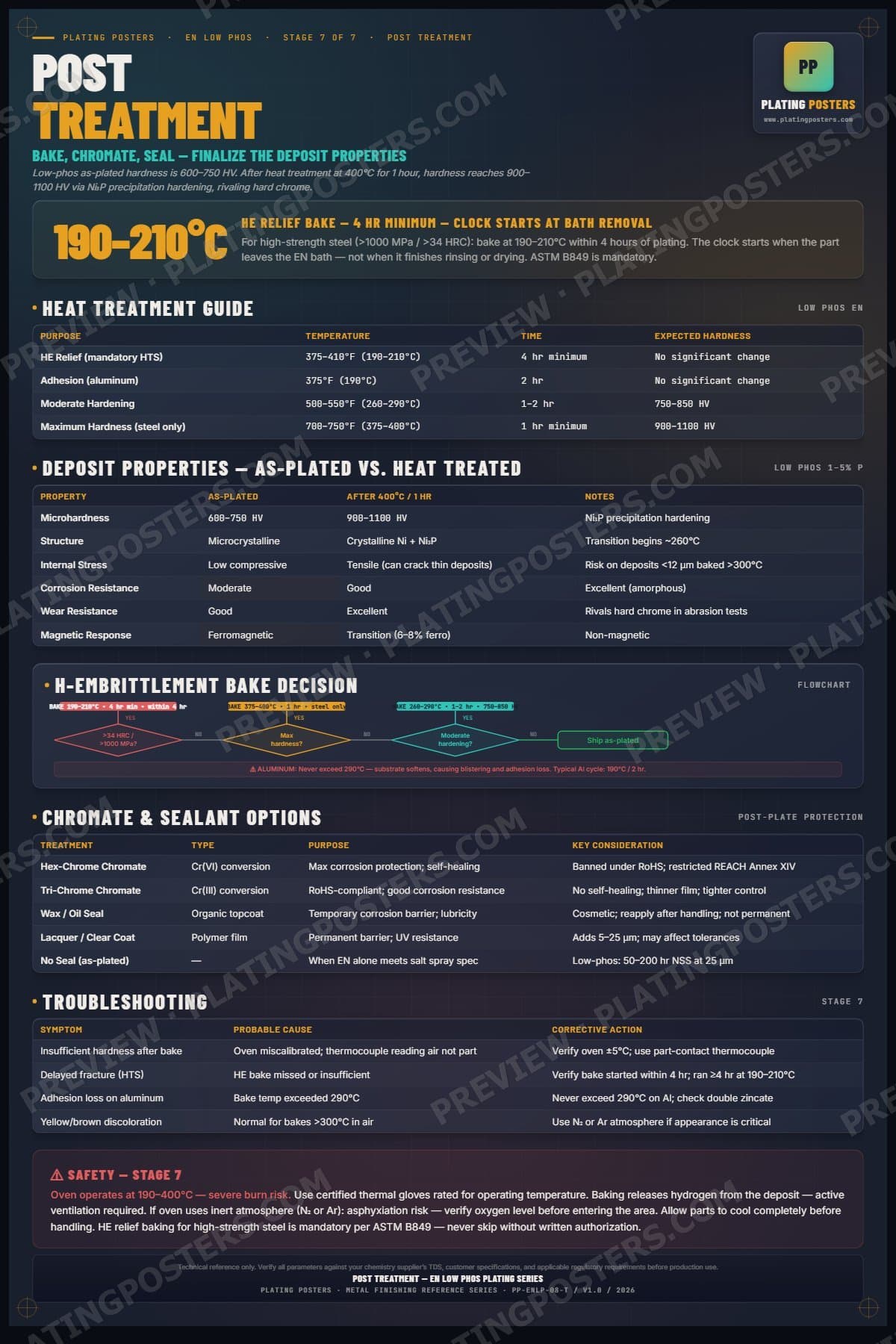

Key Number: 190–210 °C / 4 hours minimum. Hydrogen embrittlement relief baking per ASTM B849 and AMS…
Shop Floor Posters
8 designs · EN / ES · Dark / LightClean, visual quick-reference for operators — key parameters at a glance, built to hang right on the line.

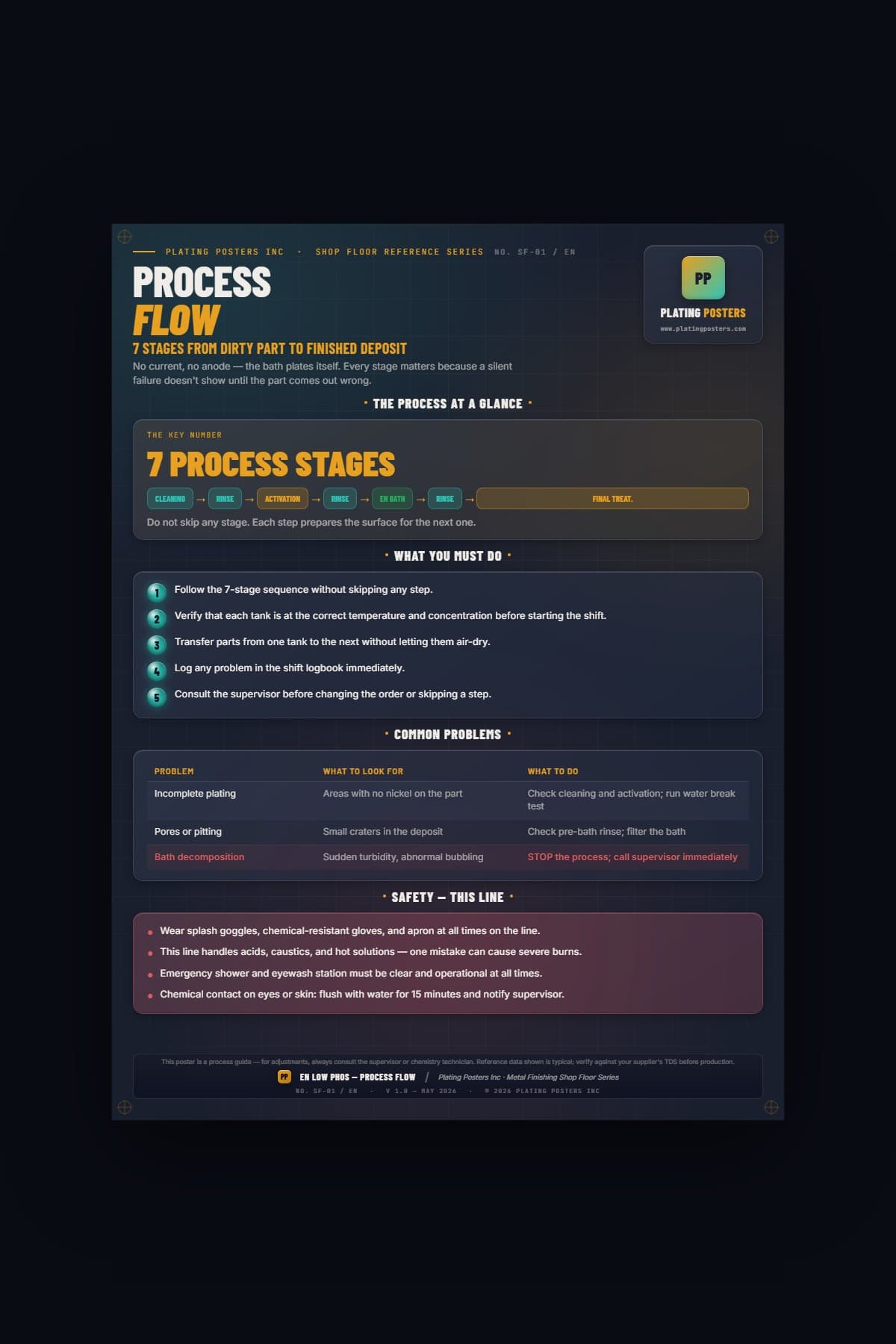

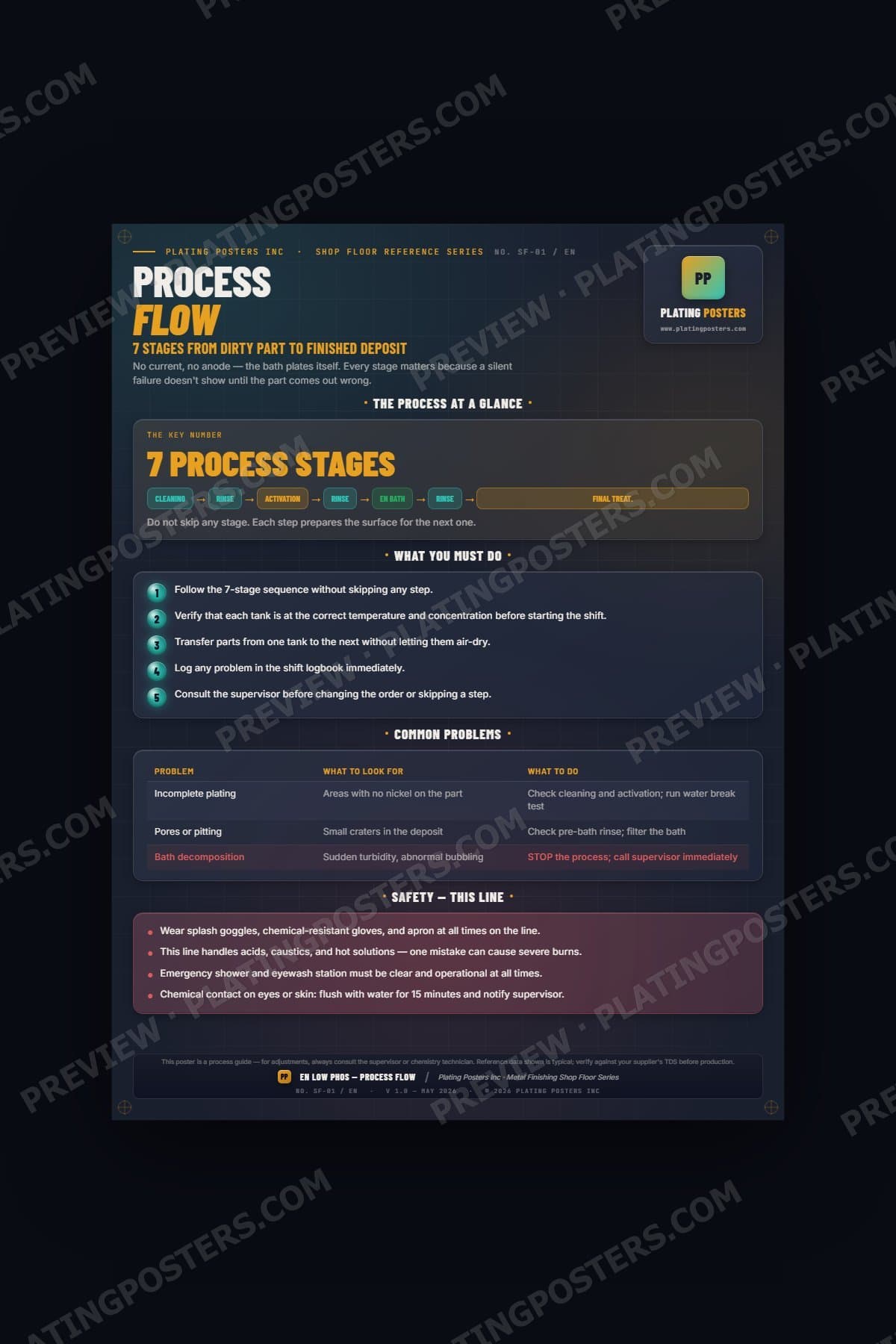

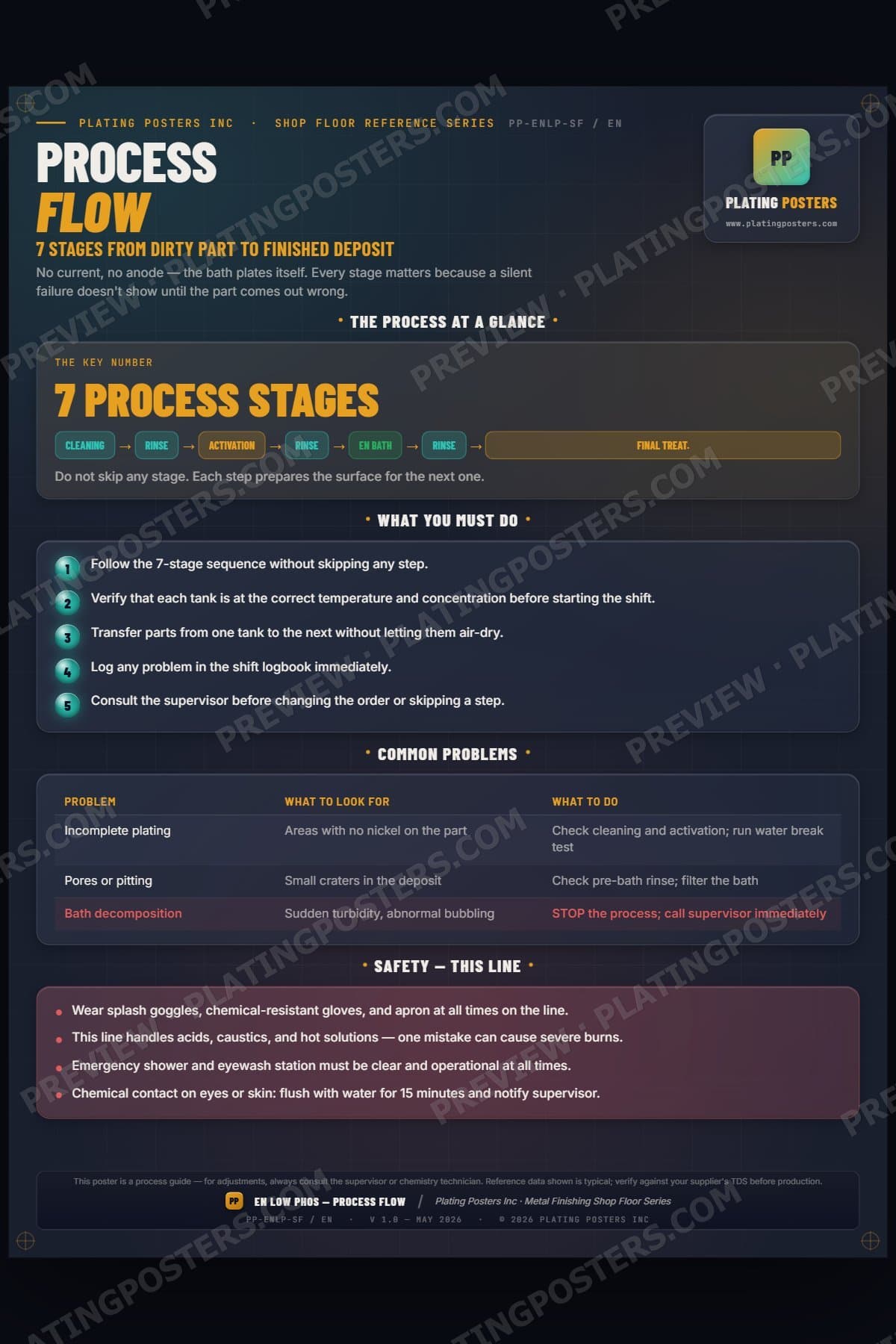

Shop Floor quick-reference: Visual process flow diagram for EN low-phosphorus line operators.…

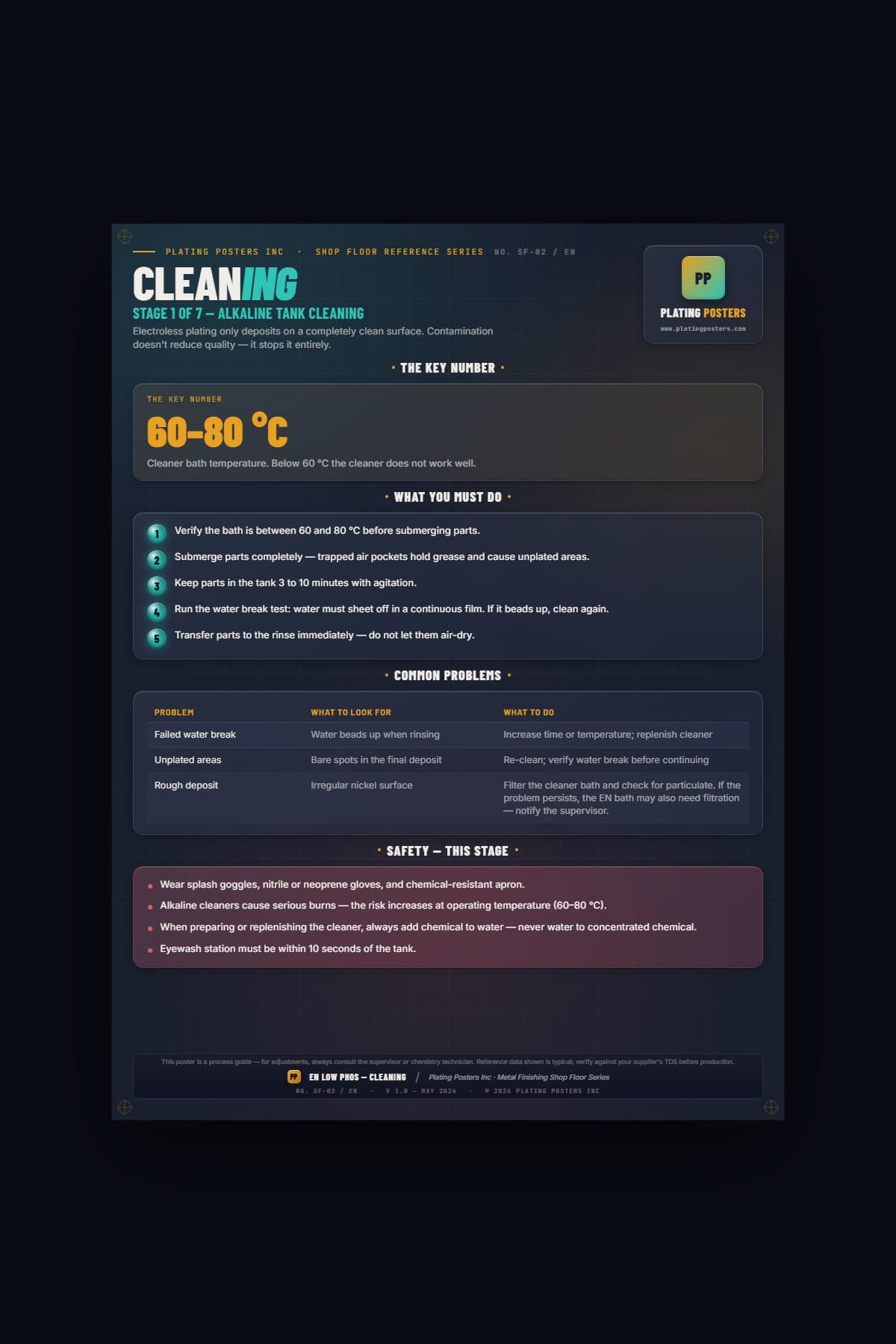

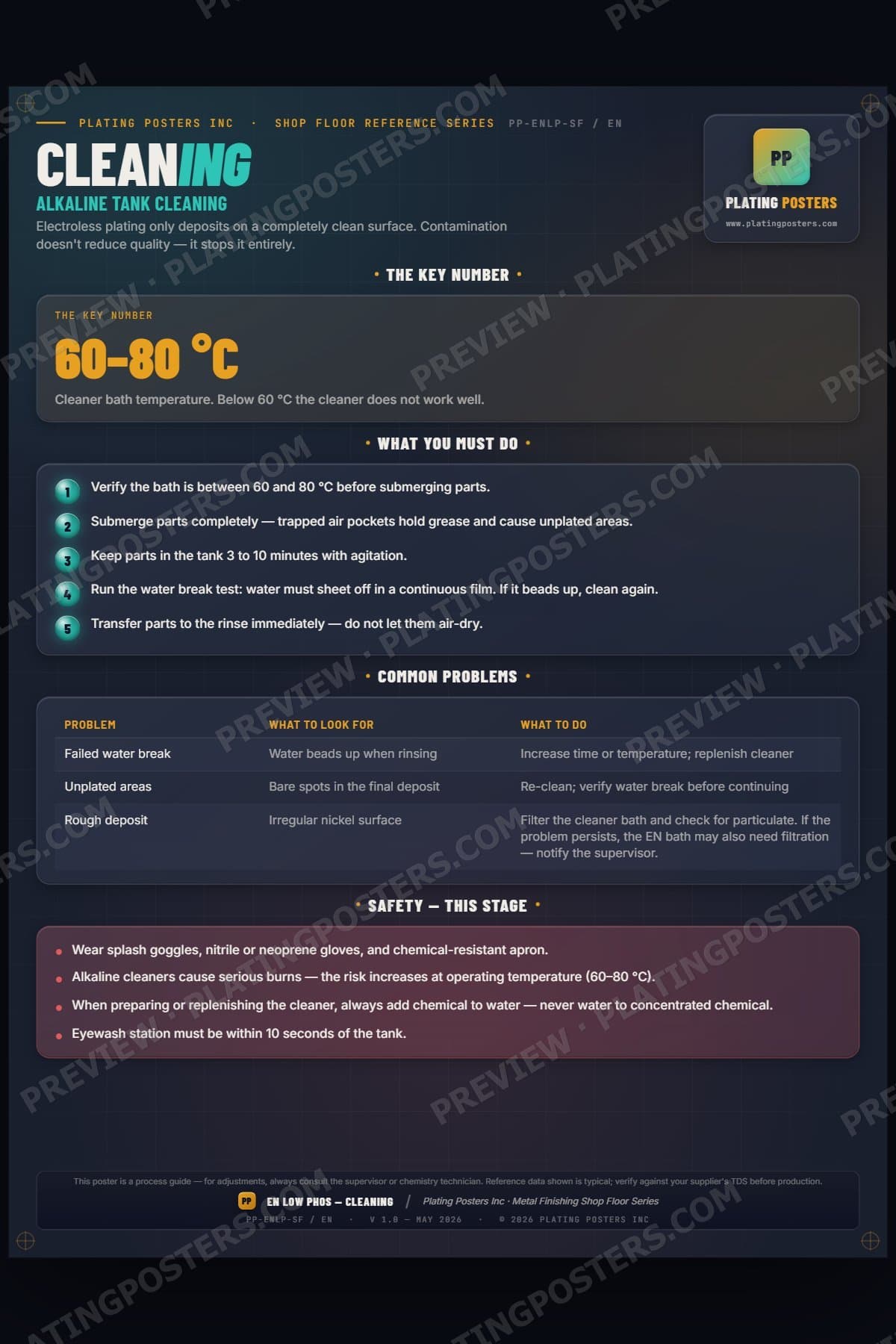

Shop Floor quick-reference: Soak clean and electrocleaning parameters for operators.…

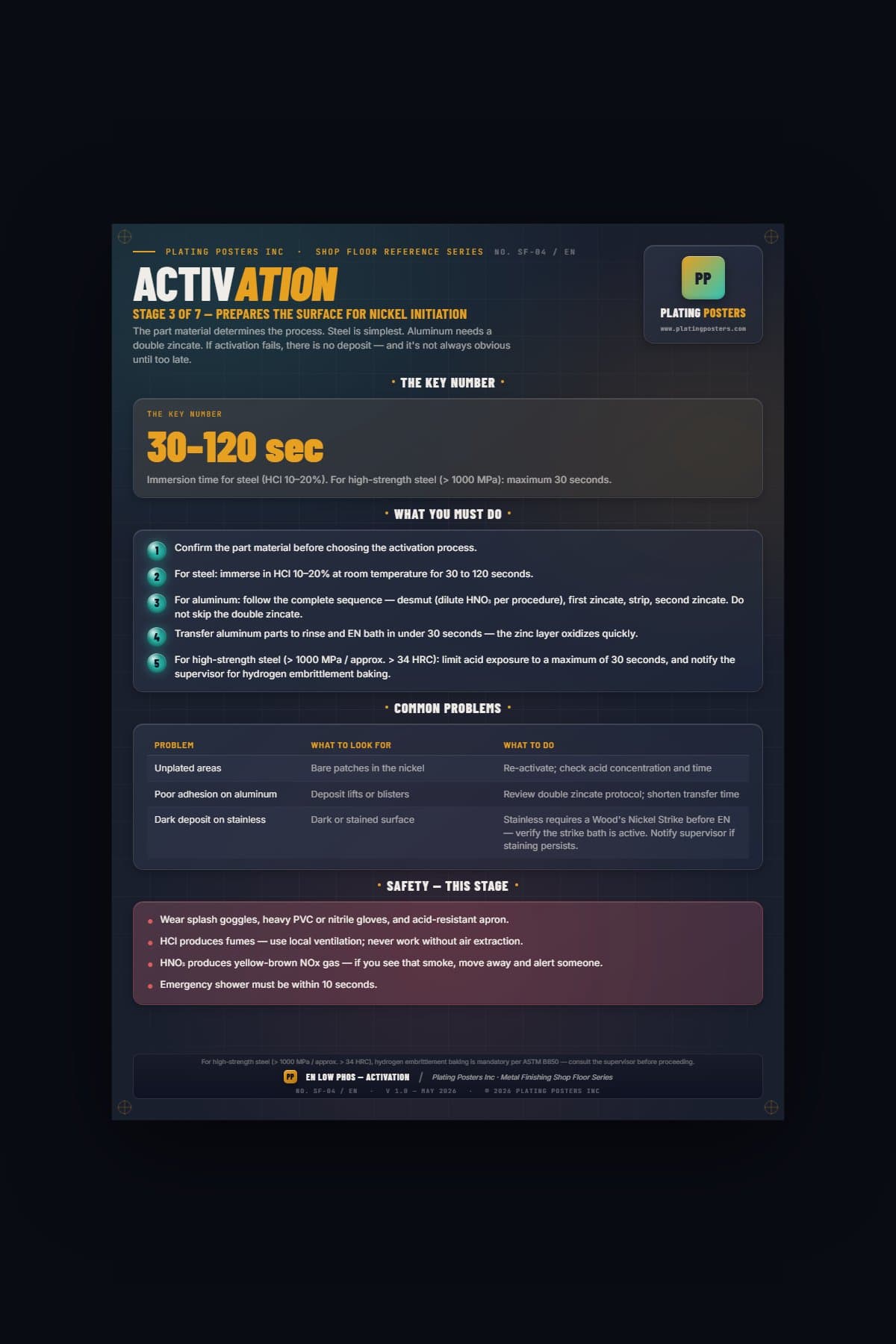

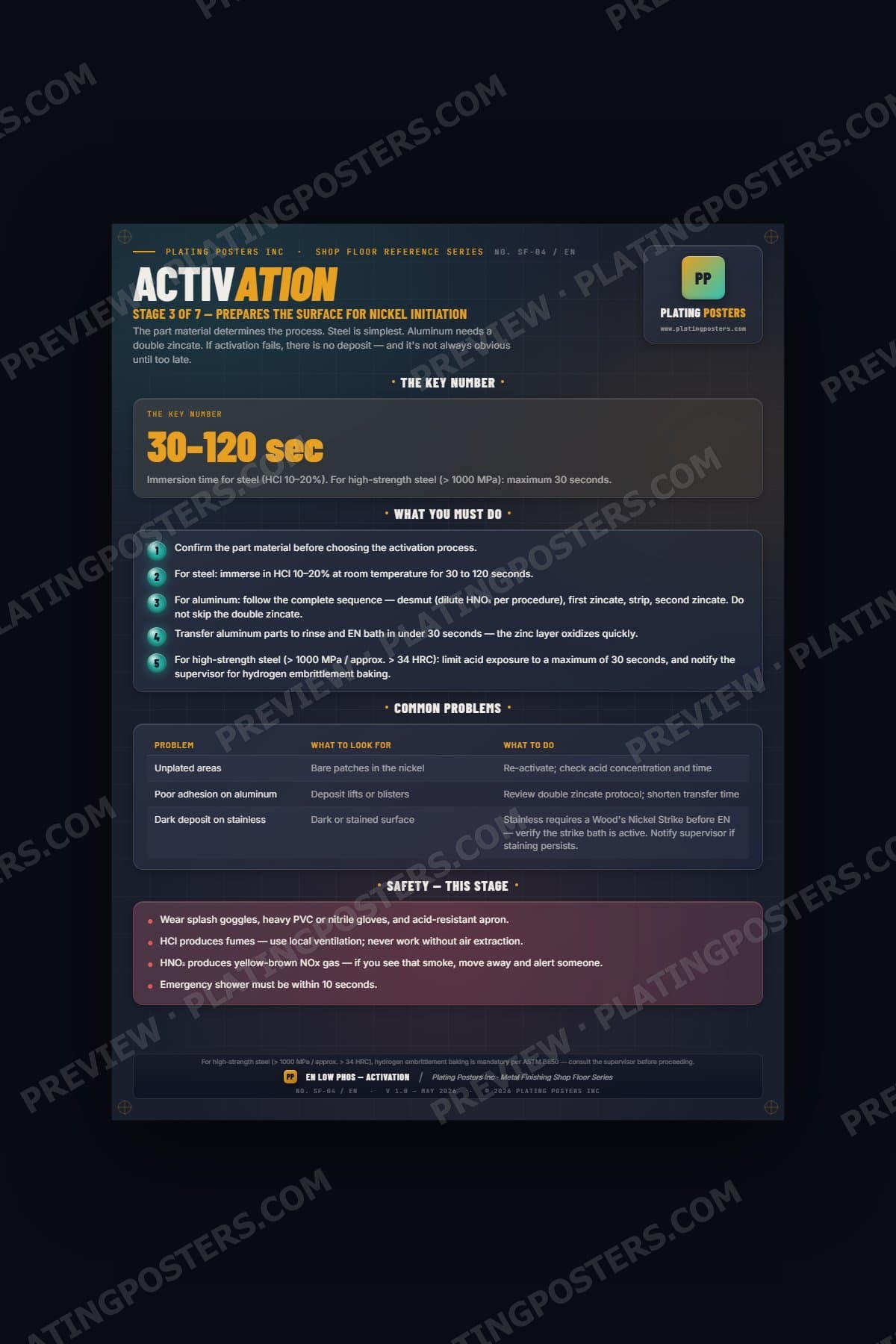

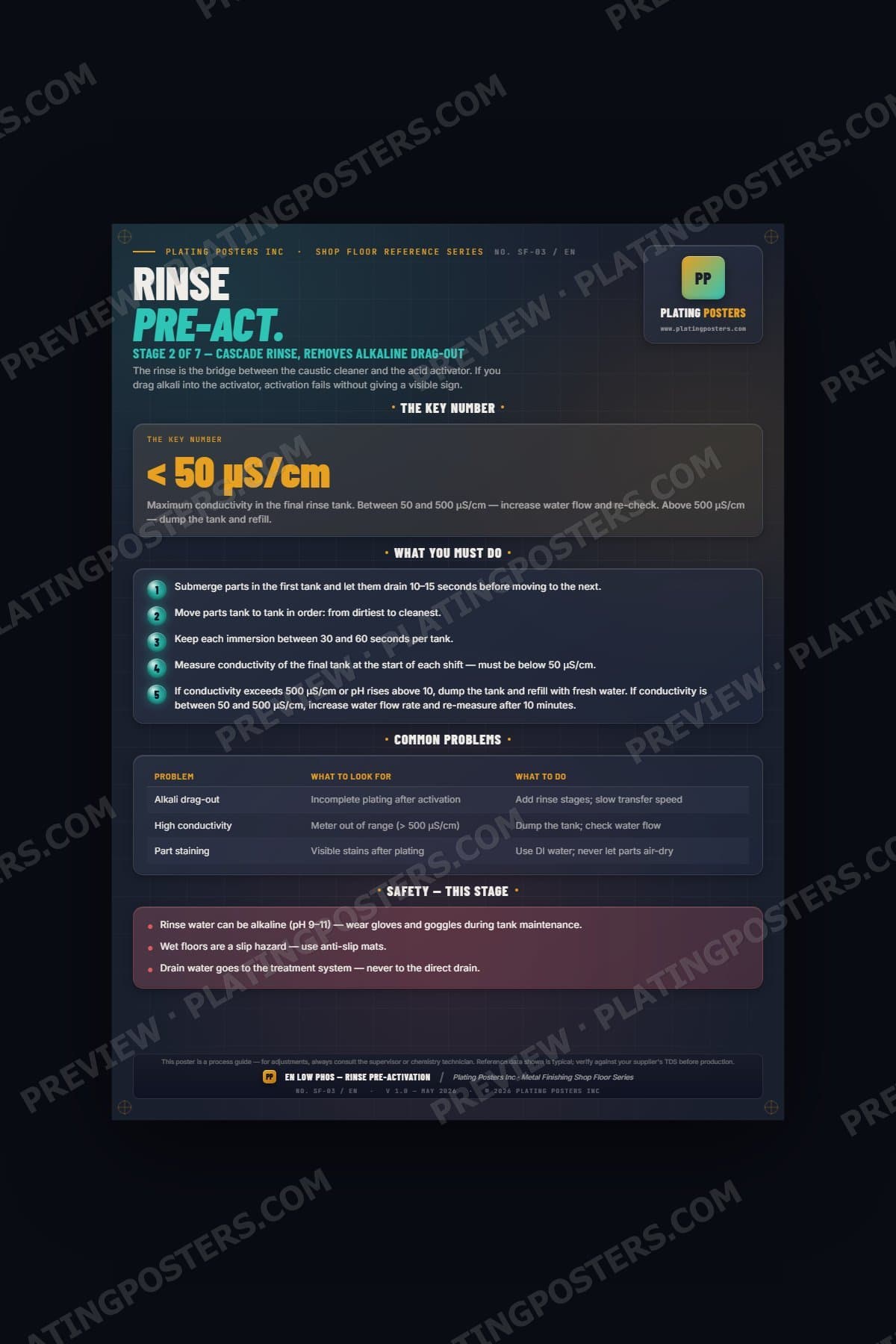

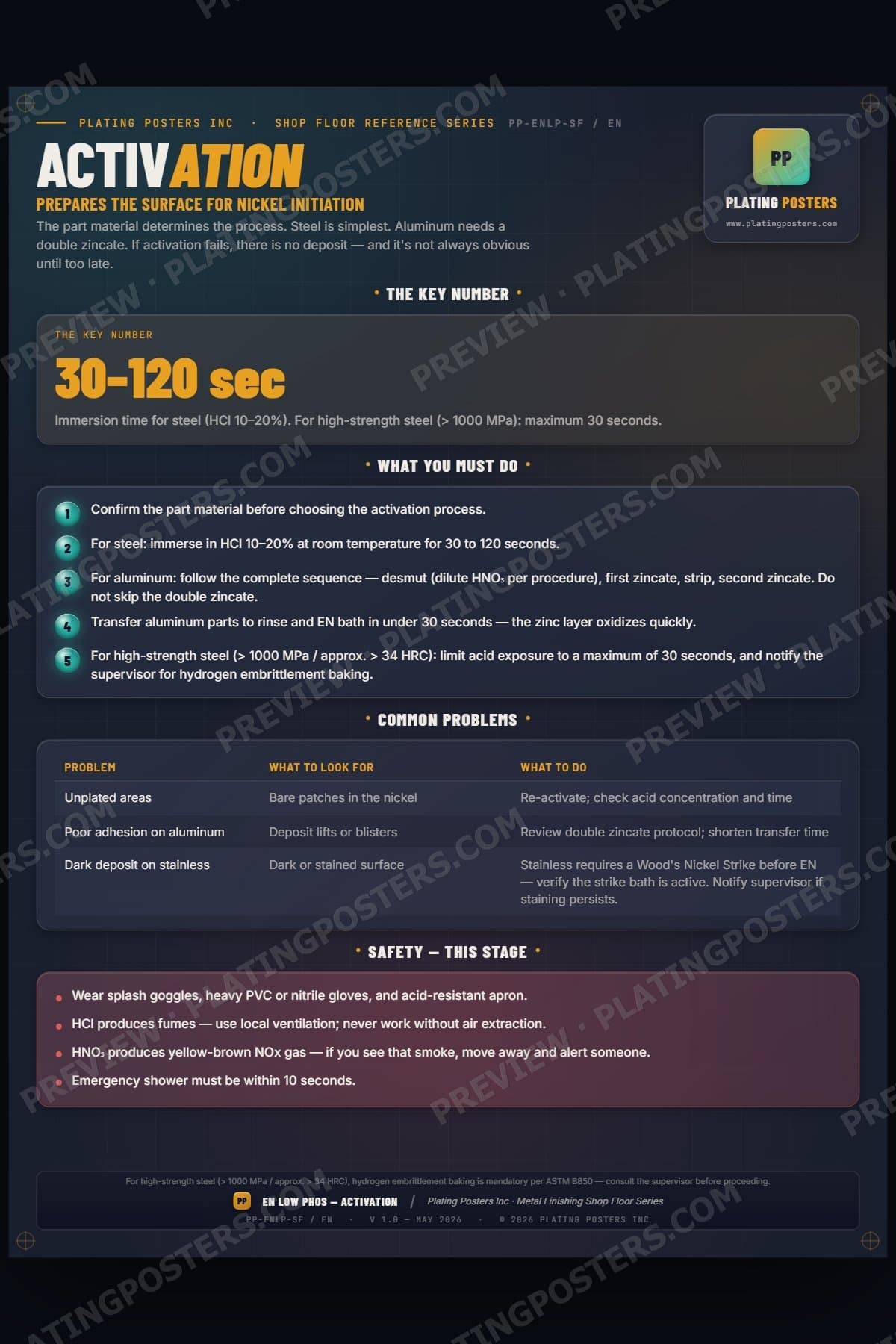

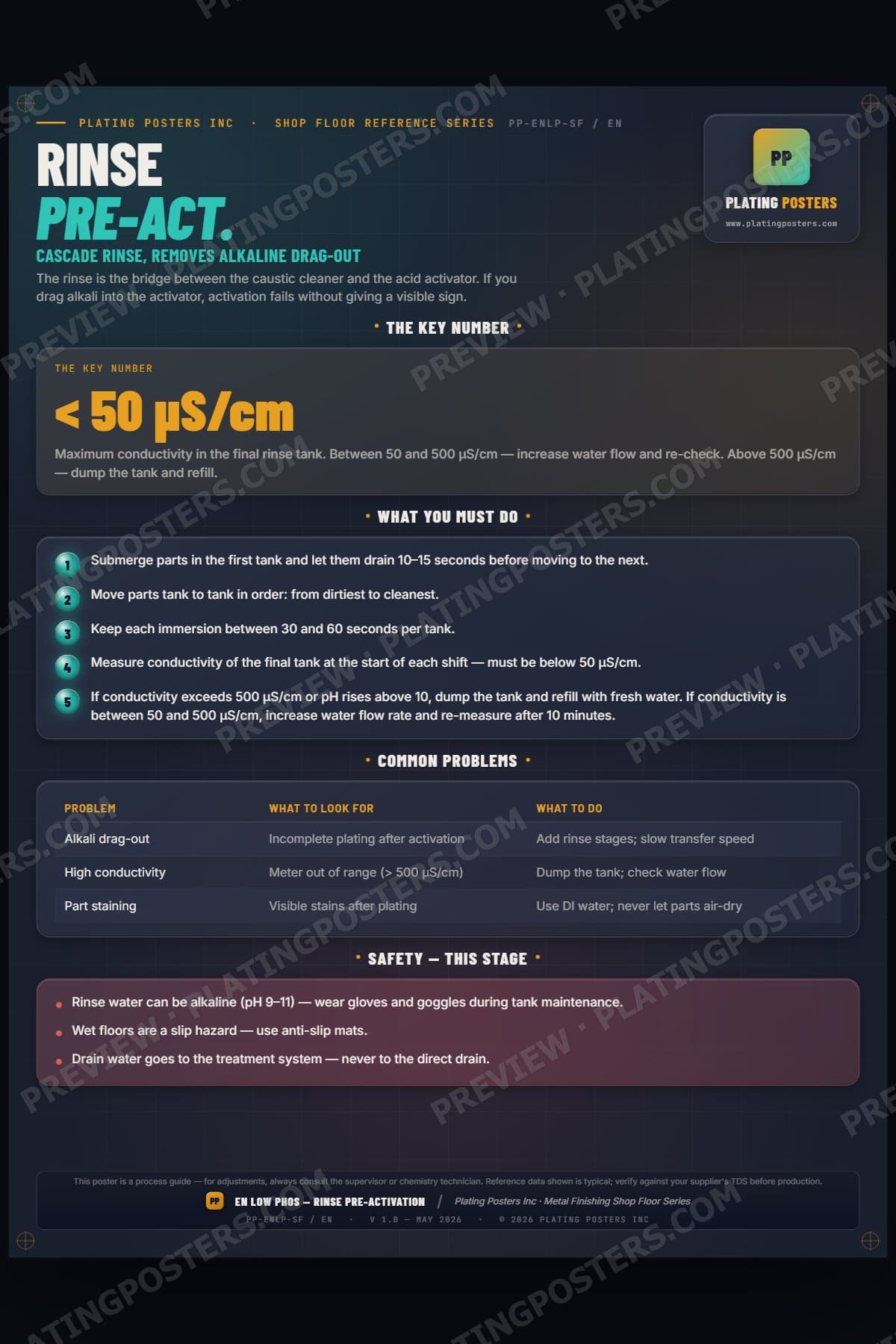

Shop Floor quick-reference: Rinse and acid activation parameters for operators.…
Shop Floor quick-reference: Catalyst activation step for operators.…

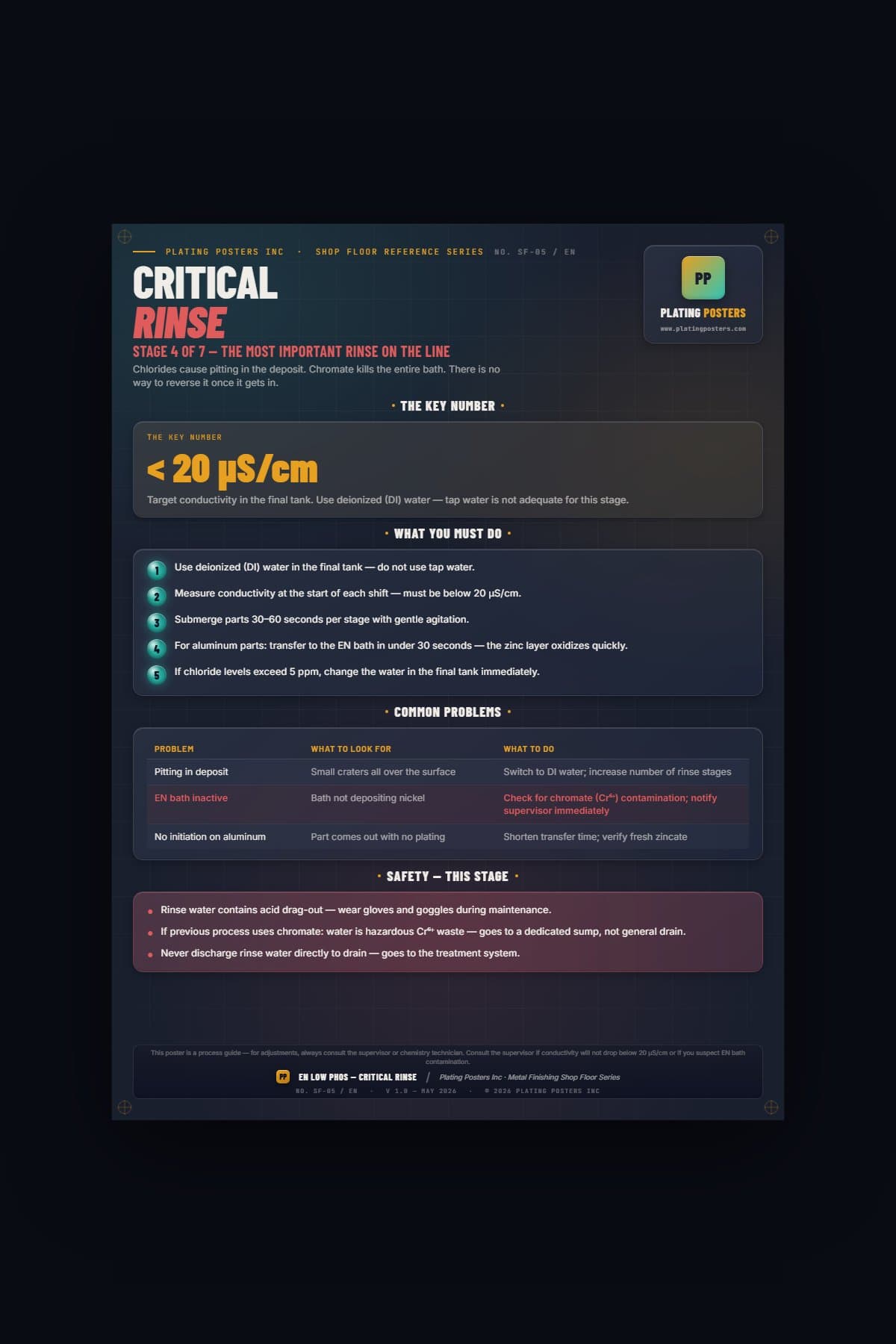

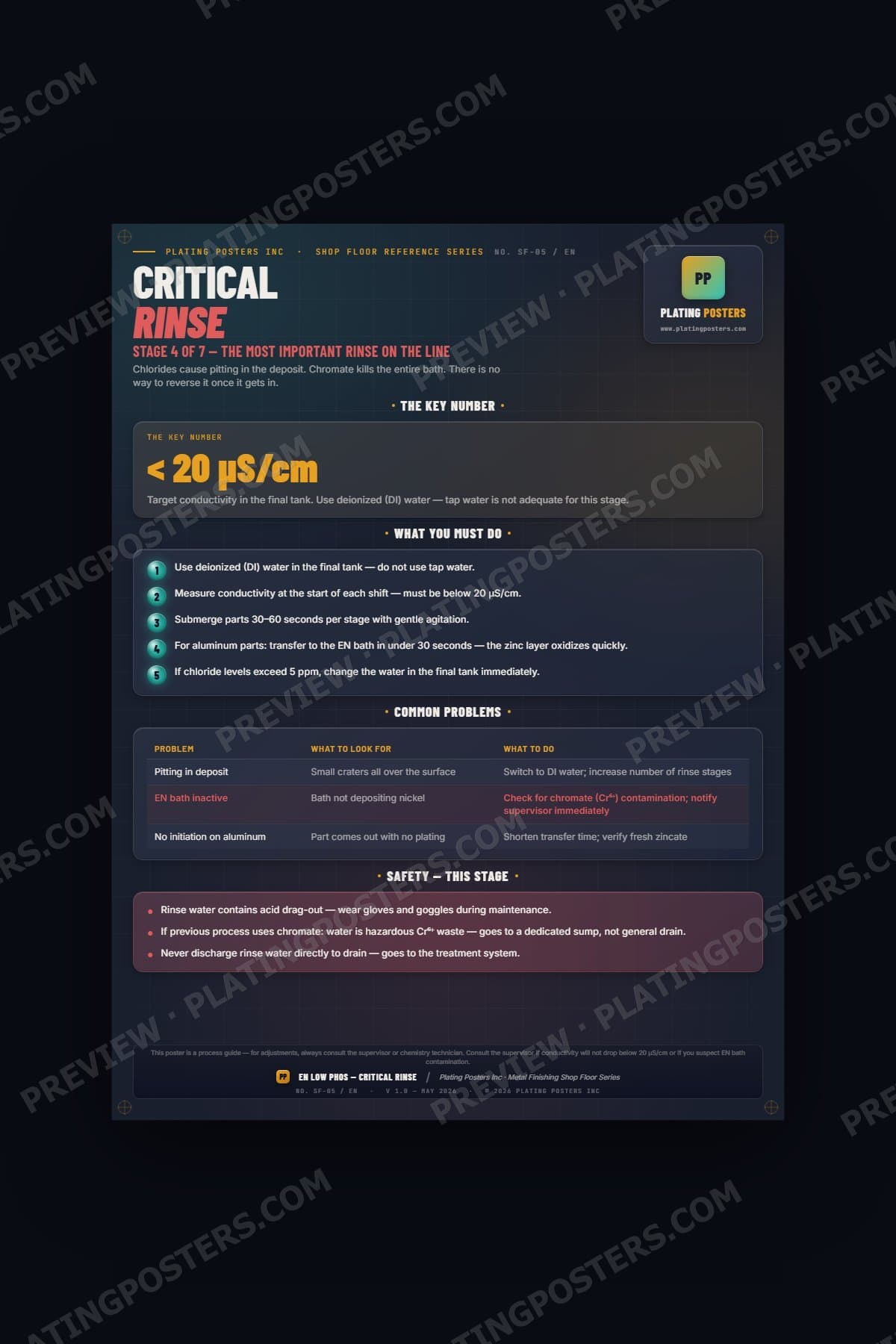

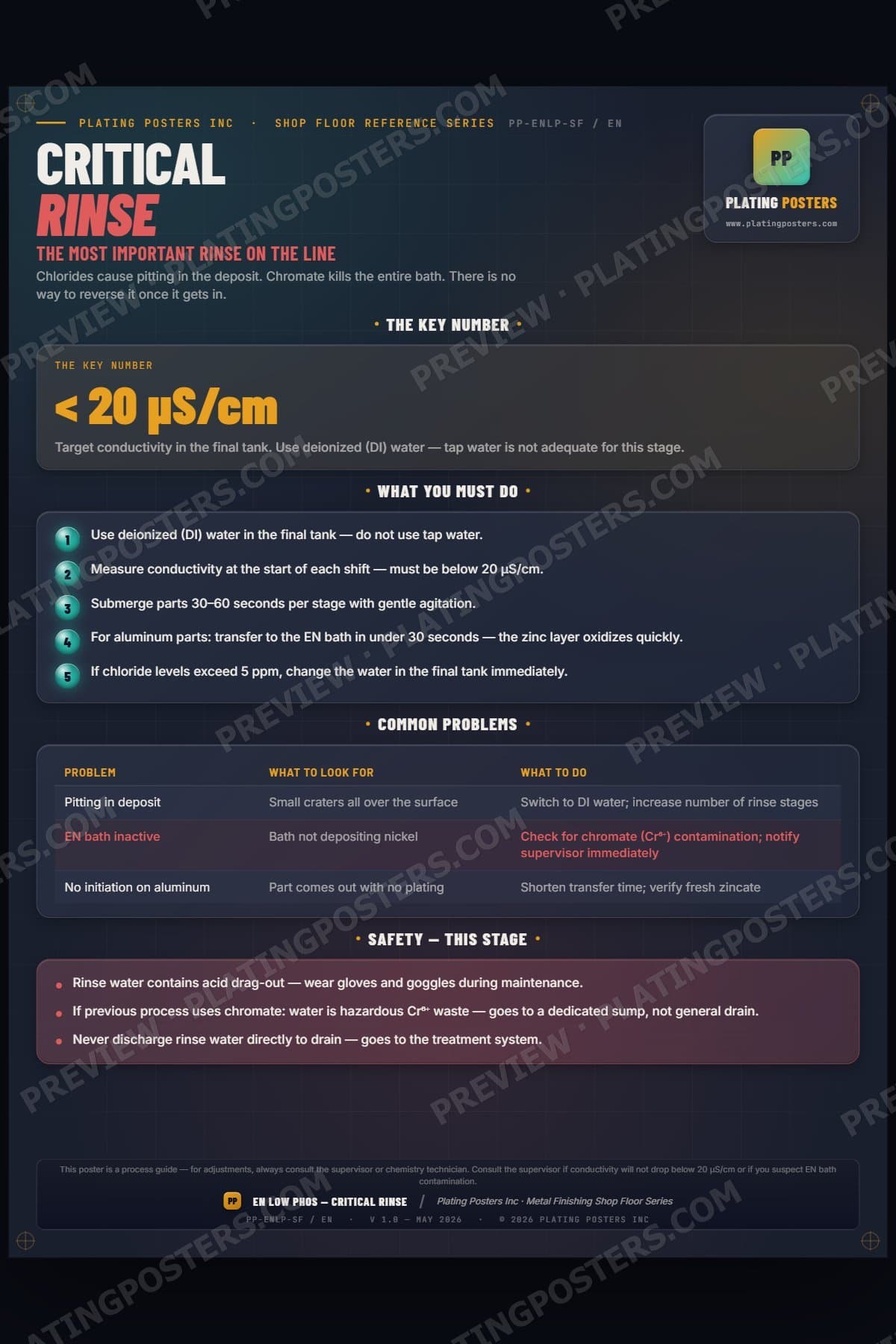

Shop Floor quick-reference: Critical rinse parameters between activation and EN bath.…

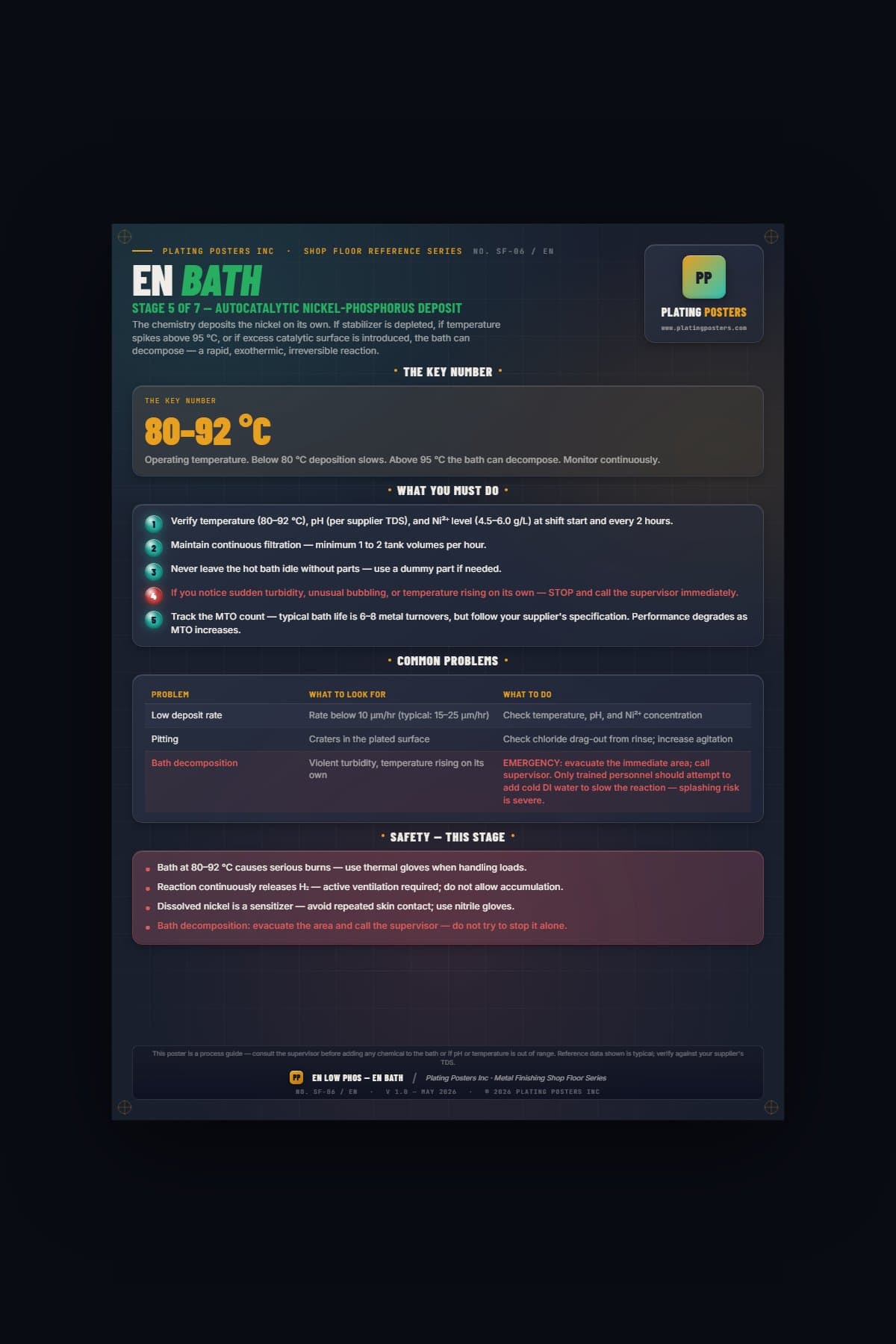

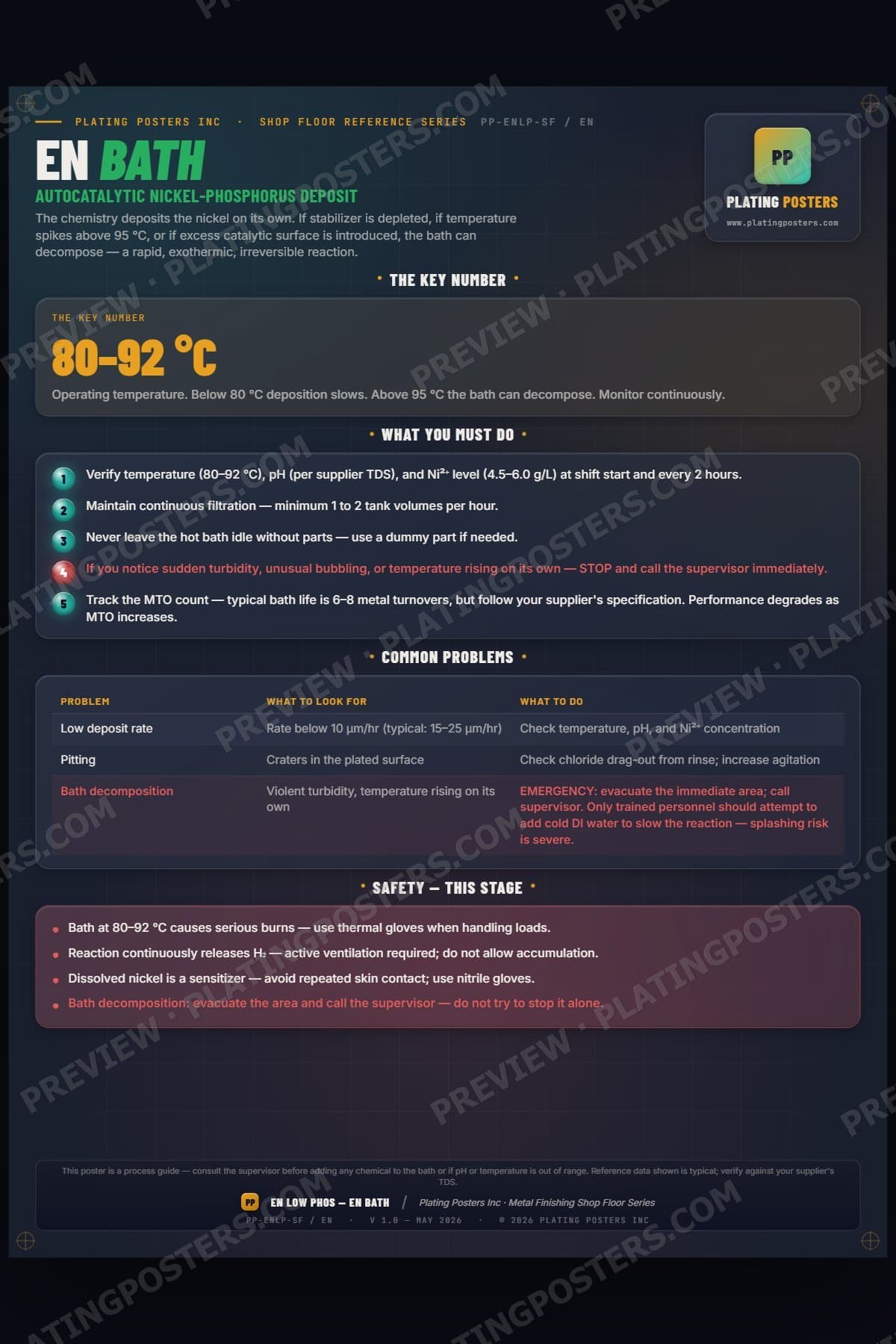

Shop Floor quick-reference: EN low-phosphorus plating bath parameters for operators.…

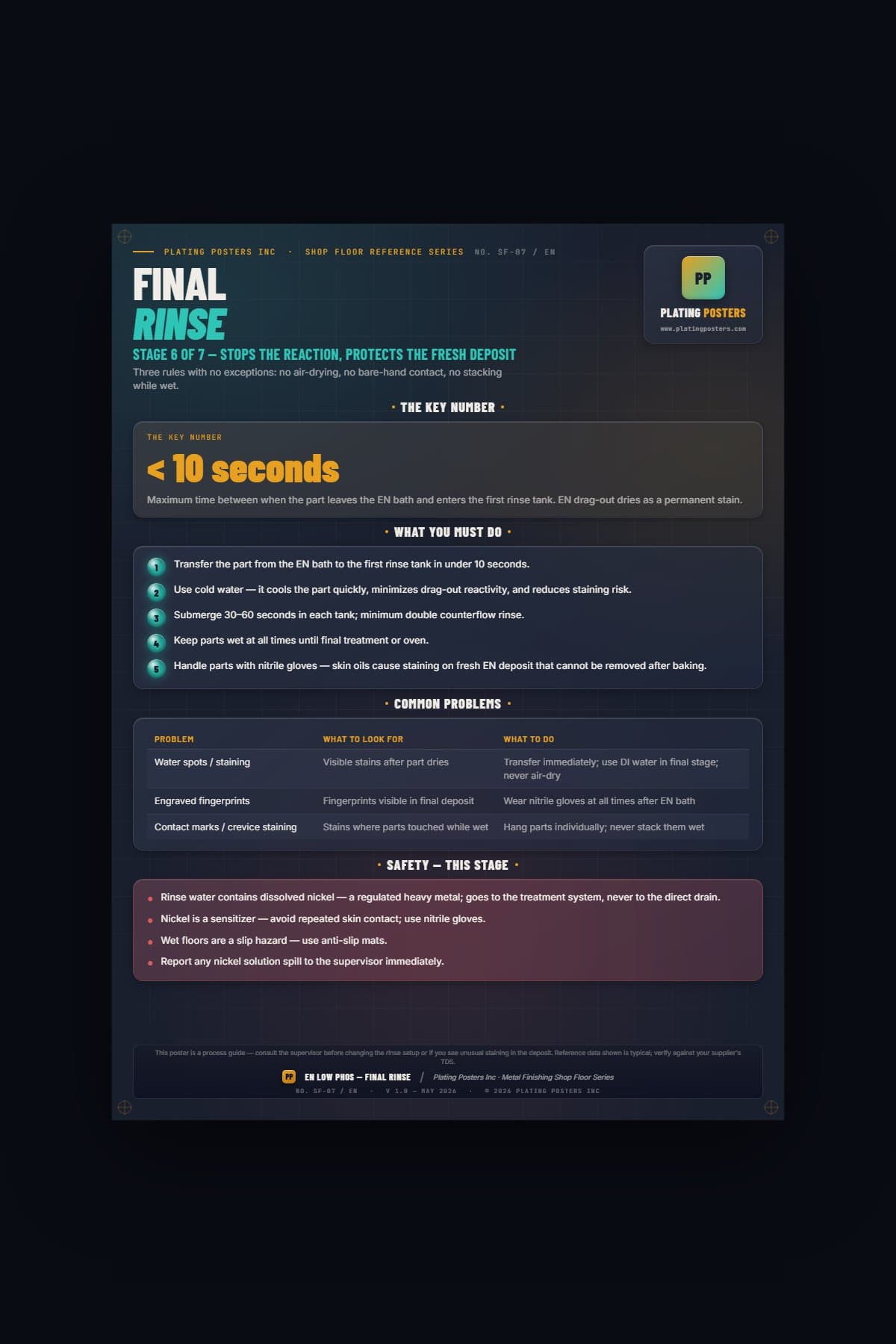

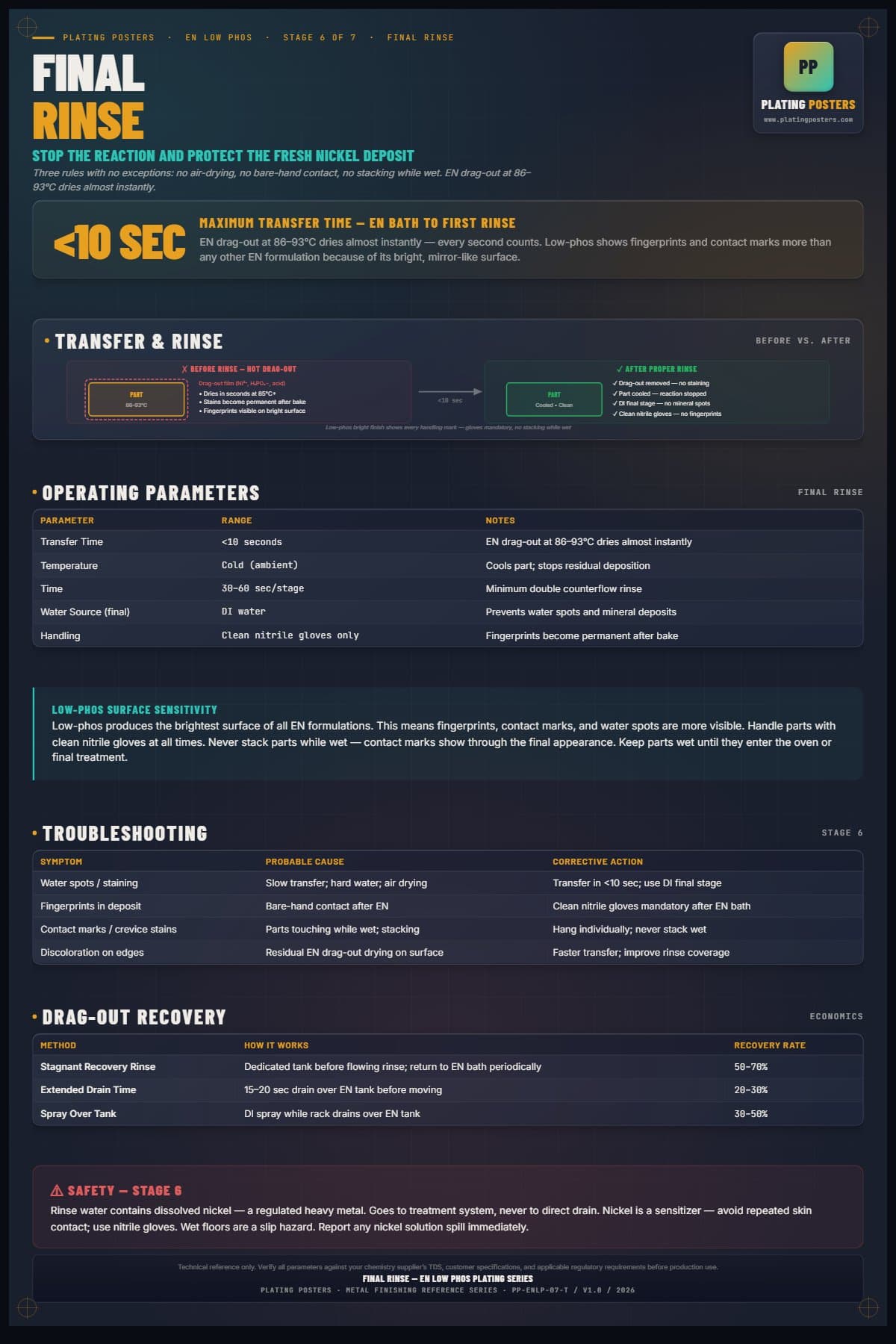

Shop Floor quick-reference: Final rinse and drag-out recovery parameters.…

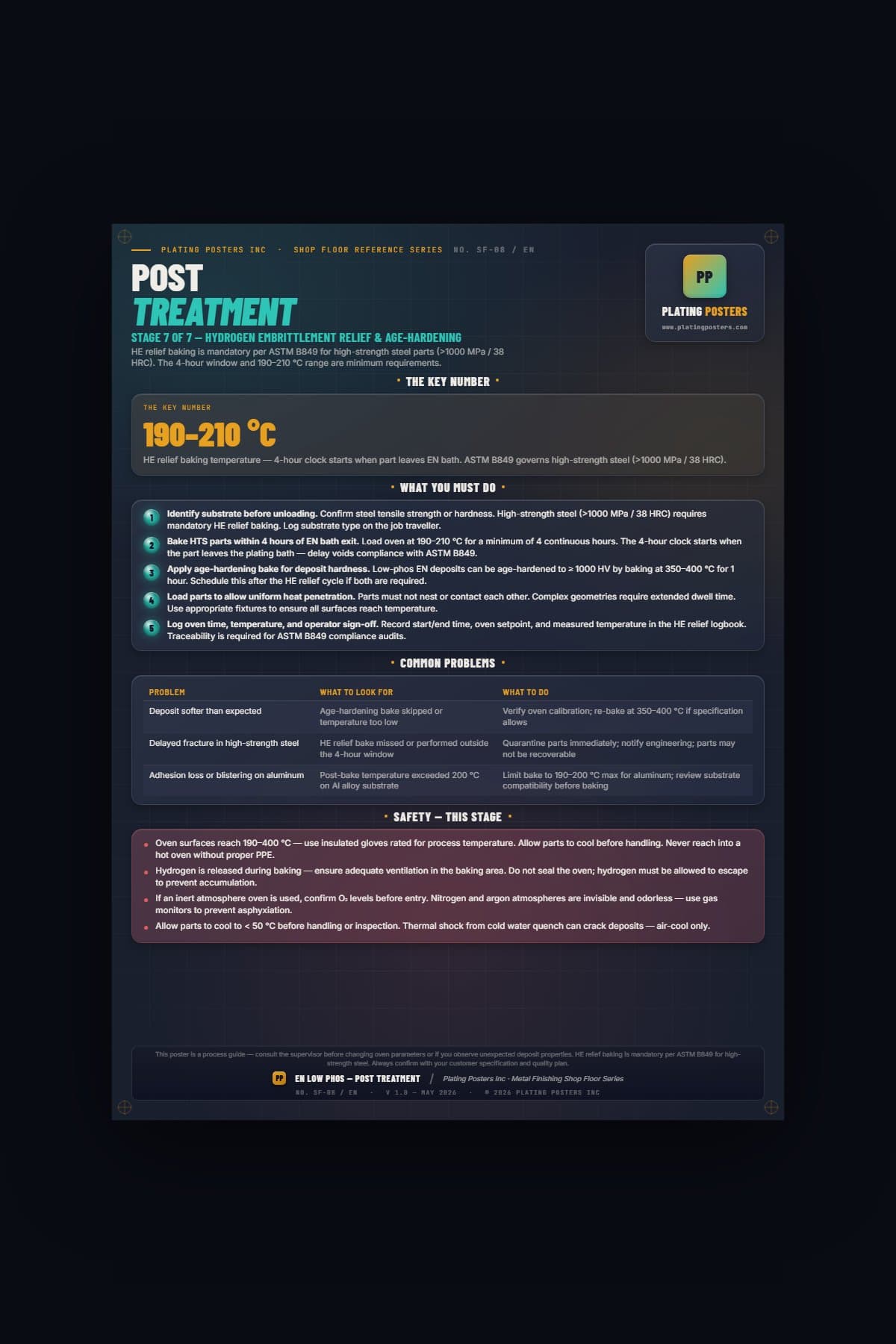

Shop Floor quick-reference: Baking parameters and hydrogen embrittlement relief for operators.…
What you get in every series
Sizes
18×24 · 24×36 · 36×48
Editions
Dark (flagship) · Light
Languages
English · Spanish
Finish
Matte Laminate · Shop Tough
All posters available with optional custom logo placement. High-res JPEG or PNG accepted (300 dpi at print size preferred; vector files always welcome).
